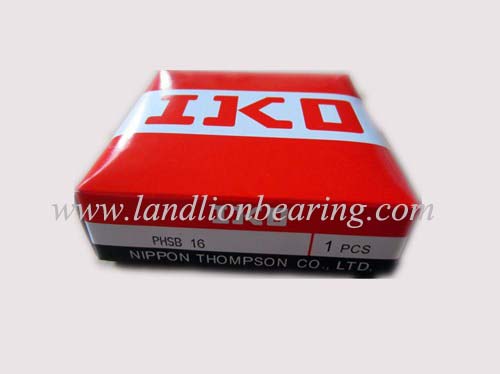

rod ends bearing PHSB16
Time: 2014-08-19 Click：2686

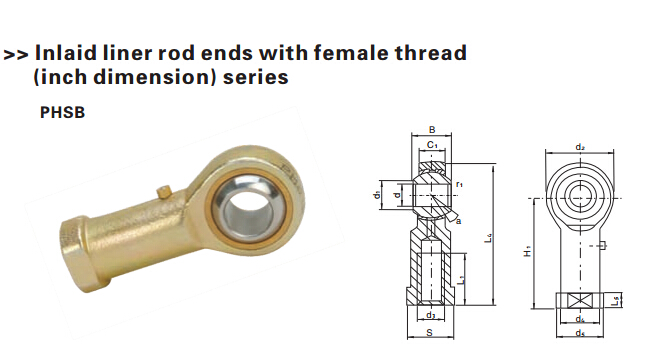

Rod ends with plain bearings. Complete.
|
Bearings
nunber
|
Dimensions（mm）
|
a°
|
Sphericai
diameter (mm)
|
Ratings
static load
|
|||||||||||||
|
d
|
Thereads
(ks)
|
d2
|
C1
|
B
|
d1
|
L4
|
L5
|
H1
|
L2
|
S
|
d5
|
d4
|
r1
|
||||
|
PHSB3
|
3/16
|
3/16×32
|
0.6692
17
|
0.2362
6
|
0.3150
8
|
0.3031
7.7
|
1.378
35
|
0.1575
4
|
1.0433
26.5
|
0.5512
14
|
0.3543
9
|
0.4331
11
|
0.3543
9
|
0.0197
0.5
|
13
|
0.4375
11.1125
|
380
|
|
PHSB4
|
1/4
|
1/4×28
|
0.7283
18.5
|
0.2657
6.75
|
0.3543
9
|
0.3543
9
|
1.5433
39.2
|
0.1969
5
|
1.1811
30
|
0.5512
14
|
0.4331
11
|
0.5118
13
|
0.3937
10
|
0.0197
0.5
|
13
|
0.5000
12.70
|
500
|
|
PHSB5
|
5/16
|
5/16×24
|
0.9055
23
|
0.3543
9
|
0.4724
12
|
0.4094
10.4
|
1.9291
49
|
0.2362
6
|
1.4763
37.5
|
0.6693
17
|
0.5512
14
|
0.6299
16
|
0.4921
12.5
|
0.0197
0.5
|
13
|
0.6250
15.875
|
700
|
|
PHSB6
|
3/8
|
3/8×24
|
1.0629
27
|
0.4133
10.5
|
0.5512
14
|
0.5078
12.9
|
2.3031
58.5
|
0.3149
8
|
1.7716
45
|
0.8268
21
|
0.6693
17
|
0.7480
19
|
0.5906
15
|
0.0197
0.5
|
13
|
0.7500
19.05
|
1100
|
|
PHSB8
|
1/2
|
1/2×20
|
1.2204
31
|
0.4724
12
|
0.6299
16
|
0.6220
15.8
|
2.6377
67
|
0.2953
7.5
|
2.0275
51.5
|
0.9449
24
|
0.7480
19
|
0.8661
22
|
0.1898
17.5
|
0.0197
0.5
|
13
|
0.8858
22.525
|
1700
|
|
PHSB10
|
5/8
|
5/8×18
|
1.4960
38
|
0.5906
15
|
0.8268
21
|
0.7598
19.3
|
3.3267
84.5
|
0.3740
9.5
|
2.5787
65.5
|
1.2992
33
|
0.9448
24
|
1.0630
27
|
0.8661
22
|
0.0197
0.5
|
13
|
1.1220
28.5
|
2550
|
|
PHSB12
|
3/4
|
3/4×16
|
1.8110
46
|
0.7086
18
|
0.9843
25
|
0.9409
23.8
|
3.9736
101
|
0.4330
11
|
3.0708
78
|
1.5748
40
|
1.1811
30
|
1.3385
34
|
1.0826
27.5
|
0.0197
0.5
|
13
|
1.3582
34.5
|
3500
|
|
PHSB14
|
7/8
|
7/8×14
|
2.0472
52
|
0.7847
20
|
1.1024
28
|
1.0157
25.8
|
4.3307
110
|
0.4724
12
|
3.3070
84
|
1.6929
43
|
1.2598
32
|
1.4566
37
|
1.1811
30
|
0.0197
0.5
|
13
|
1.5000
38.10
|
4200
|
|
PHSB16
|
1
|
1×12
|
2.3622
60
|
0.8661
22
|
1.2204
31
|
1.1732
29.6
|
4.8818
124
|
0.4724
12
|
3.7007
94
|
1.9685
50
|
1.4173
36
|
1.6535
42
|
1.3188
33.5
|
0.0197
0.5
|
13
|
1.6929
43
|
5500
|
1.For Left-hand thread suffix"L"is added to bearings number and thread sign e.g.PHSB6L M3/8×24gL .
2.The surface of spherical plain with a bronze line
3.To plate zine on the surface of rod body,the housing with a lubrication holer or a grease nipple
