Miniature Thrust Ball Bearings F series
- Ddescription

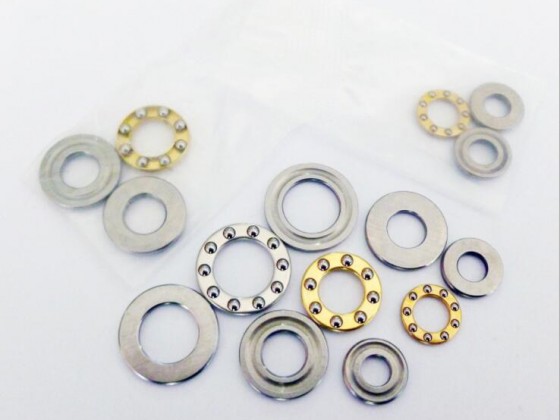

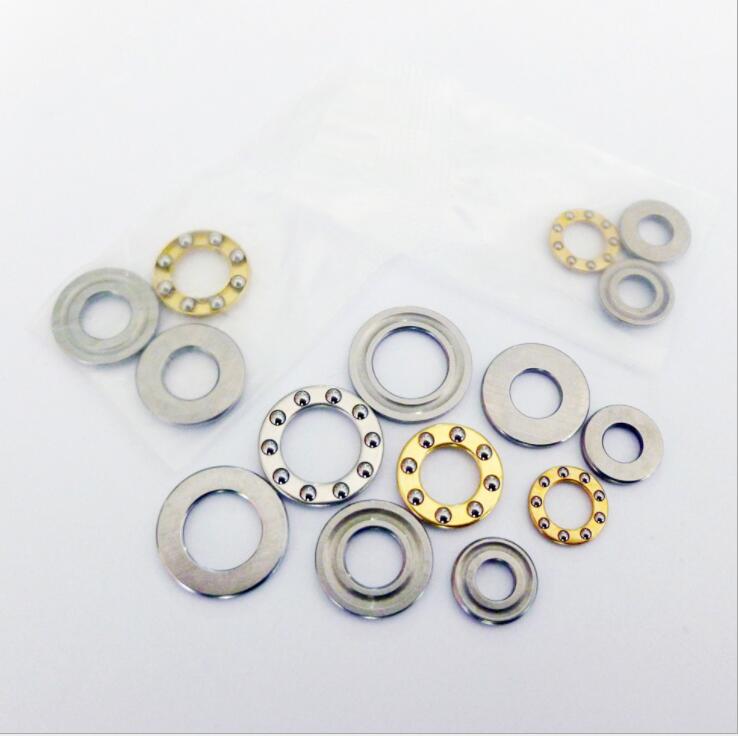

F & FM Small Thrust Ball Bearing
Miniature Thrust Ball Bearings / Small thrust ball bearing

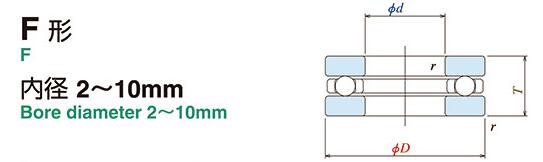

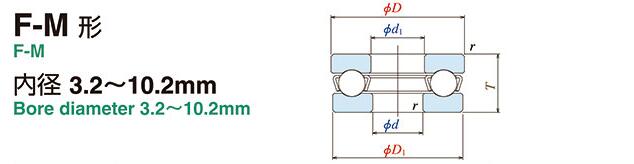

F series and FM series Miniature thrust ball bearings start with bore size 2mm to 10mm, they are divided into two series according to the difference of raceway. They are FM series(with a groove as raceway) and F series(without a groove as raceway).The material of washer is chrome steel or stainless steel for choice, and the material of cage is stainless steel or brass at request. Custom-made products is accepted in LSBC。
F2-6M F2.5-6M F3-6M F3-8M F4-8M F4-9M F4-10M F6-12M F7-15M F8-16M 9-17 F10-18M
welcome to contact to us 24/7 via Tel or email: sales1@landlionbearing.com
Part Number
bore
diameter (d)
outer diamter (D)
thickness(H)
Balls Qty/pc
Balls Size/mm
Weight/g
F2-6
2
6
3
6
1
0.6
F2.5-6M
2.5
6
3
6
1.2
0.8
F2.5-7
2.5
7
3.5
6
1.2
0.9
F2.5-7M
2.5
7
3.5
7
1.3
0.8
F3-6M
3
6
2.8
6
1
0.85
F3-8
3
8
3.5
6
1.588
0.6
F3-8M
3
8
3.5
6
1.588
0.9
F4-8M
4
8
3.3
7
1.3
0.9
F4-9
4
9
4
6
1.588
1.5
F4-9M
4
9
4
6
1.588
1.2
F4-10
4
10
4
6
1.588
2
F4-10M
4
10
4
6
1.588
1.5
F5-10M
5
10
4
7
1.588
1.6
F5-11
5
11
4.5
7
1.588
2.4
F5-11M
5
11
4.5
7
1.588
1.9
F5-12M
5
12
4
7
1.588
2.1
F6-12
6
12
4.5
8
2
2.5
F6-12M
6
12
4.5
8
2
2.2
F6-14M
6
14
5
8
2.381
3.5
F7-13M
7
13
4.5
9
2
2.6
F7-15
7
15
5
8
2.5
4.4
F7-15M
7
15
5
8
2.5
4.3
F7-17M
7
17
6
8
2.381
6.5
F8-16
8
16
5
9
3
5
F8-16M
8
16
5
9
3
4.5
F8-19M
8
19
7
8
3.175
9.1
F9-17
9
17
5
10
2.381
5.1
F9-20M
9
20
7
8
3.175
9.9
F10-18
10
18
5.5
10
2.381
6
F10-18M
10
18
5.5
10
2.381
5.4
