Rotor Completes PLC73-1-24
- Ddescription
PLC 73-1-20(40000r) PLC 73-1-14(60000r) PLC 73-1-22(65000r) PLC 73-1-24(75000r) PLC 73-1-31(80000r) PLC 72-6(90000r) PLC 72-6T(95000r) PLC 73-1-50(80000r) PLC 72-1-52(85000r) TL2270/T(70000r) TL2280(80000r) TL2290/T(90000r) TL2110(100000r) PL

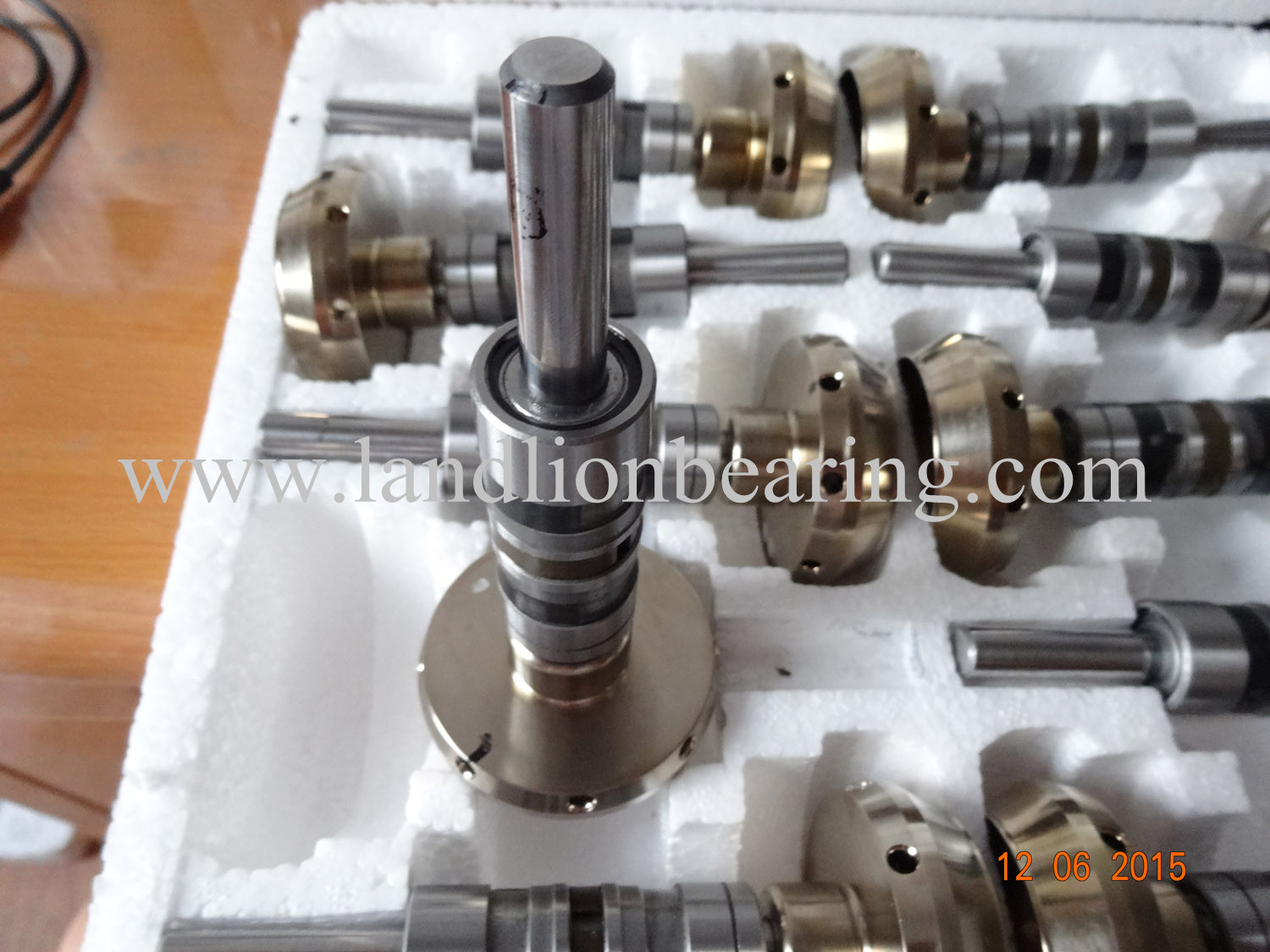

ROTOR COMBINE PIECES PLC73-1-24
pinning machine combination spare part rotor bearing 60000rpm BD200 PLC73-1-24 75000r)
1.Spd: 75000r
2.For BD200RN, BDA10, BD320, 73-1-22
3.steel, high quality bearings
Textile machinery parts
1. rotor cup dia: 66mm, 54mm, 43mm, 36mm,etc
2. bearing: 40000rpm, 60000rpm, 80000rpm, 90000rpm.

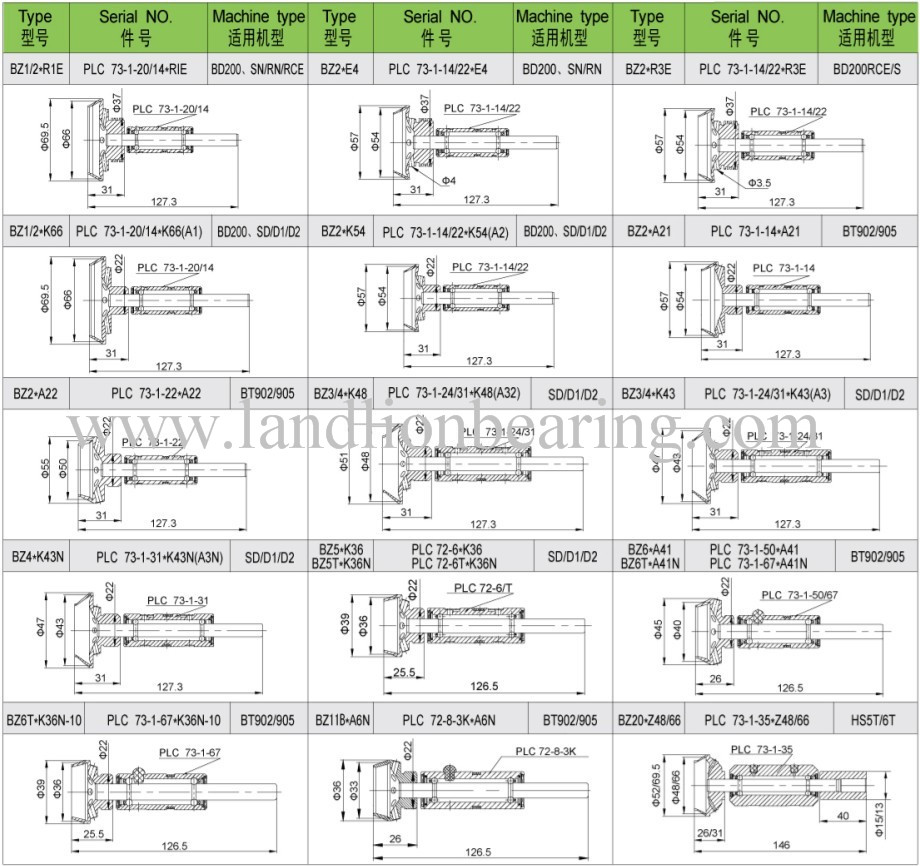

3. Bearings for rotor spinning machinery: 73-1-14, 73-1-22, 73-1-31, 73-1-31T, 72-6, 72-6T, T010, T011, T013.
4. for open end spinning frame: Elitex BD200 RN/SN, Elitex BDA10/20, Rieter BT 902/905, Toyoda HS 5T/6T, Rieter MU 1/1, Rieter BT923, Saurer BD D30/320/330/350/380, Jingwei, Rifa, Taitan, Elitex/Investa BD200, BDA10/20, BT902/903/905.
4. Custom requirement size are also available
|

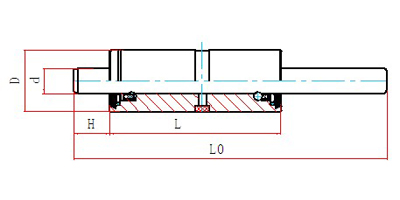

Model |
D |
d |
H |
L |
L0 |
Speedr/min |
noise dBA |
Apply to type |
note |
|
|
|||||||||
|
PLC73-1-35 |
34 |
10 |
19 |
74 |
112 |
60000 |
≤40 |
HS5T/6T |
steel balls |
|
PLC74-5-4 |
34 |
12 |
19 |
74 |
110 |
40000 |
≤40 |
HS4T |
|

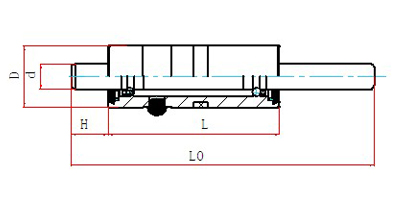

Model |
D |
d |
H |
L |
L0 |
Speedr/min |
noise dBA |
Apply to type |
notes |
|
|
|||||||||
|
TL2110 |
22 |
8.9 |
13 |
61 |
112 |
100000 |
≤40 |
BD –D30 |
ceramic balls |
|

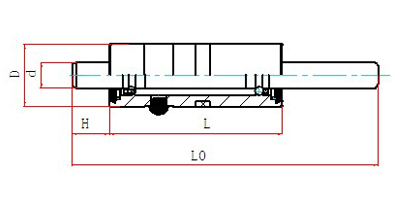

Model |
D |
d |
H |
L |
L0 |
Speedr/min |
Noise |
Apply to type |
notes |
|
|
|||||||||
|
PLC73-1-50 |
22 |
10 |
13 |
61 |
112 |
80000 |
≤40 |
BT902/905 |
Steel balls&ceramicballs |
|
PLC73-1-67 |
22 |
10 |
13 |
61 |
112 |
85000 |
≤40 |
ceramic balls |
|

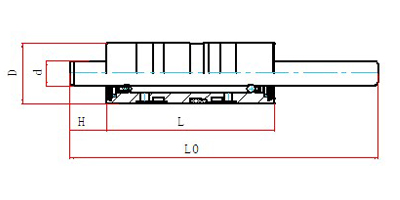

Model |
D |
d |
H |
L |
L0 |
Speed r/min |
Noise dBA |
Apply to type |
Notes |
|
Model |
|||||||||
|
PLC72-8-6 |
22 |
8.9 |
13 |
61 |
108 |
110000 |
≤40 |
BT923 F1612 |
Ceramic balls |
|
Model |
D |
d |
H |
L |
L0 |
Speed r/min |
Noise |
Apply to type |
Notes |
|
Model |
|||||||||
|
PLC72-6 |
22 |
8.9 |
13 |
61 |
112 |
100000 |
≤40 |
BD RFRS10 |
ceramic balls |
|

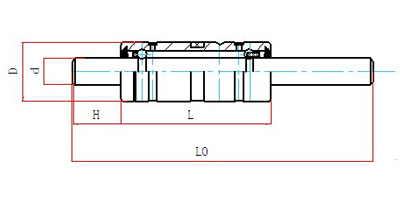

Model |
D |
d |
H |
L |
L0 |
Speed r/min |
Noise |
Apply to type |
Notes |
|
|
|||||||||
|
PLC73-1-24 |
22 |
10 |
18 |
56 |
112 |
75000 |
≤40 |
BD200 |
steel balls |
|
PLC73-1-31 |
22 |
10 |
18 |
56 |
112 |
80000 |
≤30 |
|

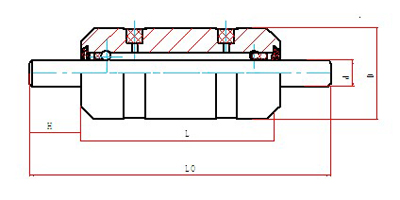

Model |
D |
d |
H |
L |
L0 |
Speed r/min |
Noise |
Apply to type |
Notes |
|
|
|||||||||
|
PLC73-1-20 |
22 |
10 |
18 |
56 |
112 |
40000 |
30~40 |
BD200 FA601 |
Steel |
|
PLC73-1-14 |
22 |
10 |
18 |
56 |
112 |
60000 |
≤30 |
||
|
PLC73-1-22 |
22 |
10 |
18 |
56 |
112 |
65000 |
≤30 |
