bottom roller bearing

Time:2015-03-18 20:29:58      Click:1486
  • Ddescription

    skf bottom roller bearing ntn bottom roller bearing

Product introduction

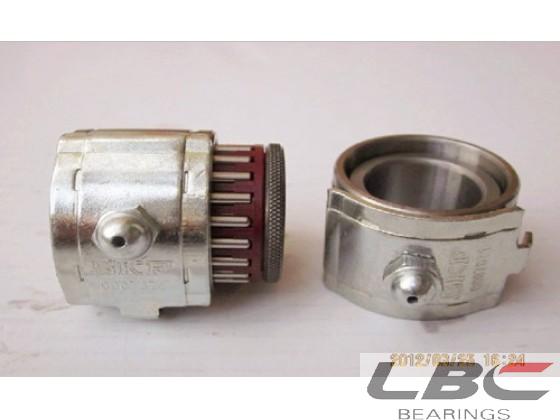

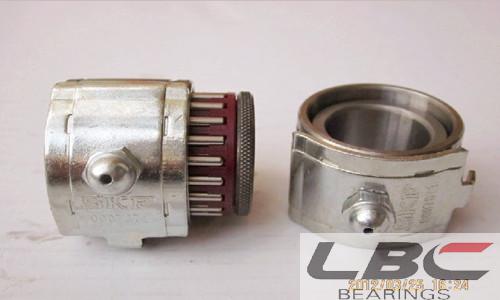

Bottom Roller Bearing :- Used for supporting bottom roller in ring spinning frames & speed frames of textile industries. Every bearing is ground to strict quality norms which ensures accurate running of the bearing.with ‘m’section nylon cage.

Various range of the Textile Bottom Roller Bearings are manufactured in our unit are

Reference No. International No. d (mm) D (mm) B (mm) B1 (mm) L/N
KW 11.28 (22) UL11.28 14.2 28 10.2 18 22.5
KW 152813 (24) UL28-0211159 15 28 13 23 24.2
KW 162823 (24) UL28-0021164 16 28 13 23 24.2
KW163026 A  - 16 30 26 22 -
(With pin)
KW 162826 A  - 16 28 26 22 -
(With pin)
KW 282 UZ282 16.295 28 17 20 5.9
KW 323 UL32-023114 16.295 32 17 20 5.9
KW 21.28 UL28-003590 16.5 28 19 22 5.9
KW 21.28 (20) UL28-000416 16.5 28 19 22 20.2
KW 21.28 (22) UL28-000417 16.5 28 19 22 22.2
KW 21.28 (24) UL28-000418 16.5 28 19 22 24.2
KW 21.28 (26) UL28-0010047 16.5 28 19 22 26.2
KW 23.28 (22) UL28-0010080 16.5 28 23 23 22.2
KW 23.28 (24) UL28-0010083 16.5 28 23 23 24.2
KW 16.5 x 32(20.6) UZ 32 - STR 16.5 32 19 23 20.6
KW 55749 INA F - 55749 16.5 28 23 22 -
KW 50995 A INA F 50995 17 32 22 25 -
(with short bracket)
KW 50995 B INA F 50995 17 32 22 25 -
(with long bracket)
KW 519511 SRO12304 17 35 22 22 -
KW 519512 SRO12280 17 47 22 22 -
KW 173026  - 17 30 26 21 -
(w/o bkt.,only nipple)
KW183226 A  NTN FRIS 183226 18 32 26 23 -
(with dowel pin)
KW 183226 B NTN FRIS 183226 18 32 26 23 -
(without dowel pin)
KW 183426 FRIS 16X28 (NTN) 18 34 26 21 -
KW 18.5 32 23 A/B - 18.5 32 23 26 -
KW 32 Z UL32-019169 18.5 32 19 22 5.9
KW 3000 Z UL30-0007871 18.5 30 19 22 5.9
KW 3000  UL30-028276 18.5 30 19 22 5.9
(with funnel nipple)
KW 3000 T UL30 - 003665 18.5 30 19 22 5.9
KW 3000 (22) UL30-002610 18.5 30 19 22 22.2
KW 3000 (26) UL30-0018195 18.5 30 19 22 26.2
KW 36 UL36-014782 18.5 36 19 22 5.9
KW 328 UL32-0013400 /  19 32 20 23 5.9
UL32-0015143
KW 328 (22) UL32-000421 19 32 20 23 22.2
KW 328 (24) UL32-000422 19 32 20 23 24.2
KW 328 (25) UL32-000423 19 32 20 23 25.2
KW 328 (26) UL32-0012499 19 32 20 23 26.2
KW 3210-1D UN3210-1D 19 32 20 23 -
KW 3210-2D UN3210-2D 19 32 20 23 -
KW 193622 - 19 36 22 25 5.9
KW 213622 UL36-0016442 21 36 22 25 5.9
KW 4008 UL 40 - 025408 23 40 21 24 5.9
KW 18636 UL32-036128 " 32 " 22 5.9
