McGill Cam Follower Bearing with Stud CF-1-1/2-SB

Time：2021-12-07 17:35:03 Click：1182

Ddescription

Product introduction

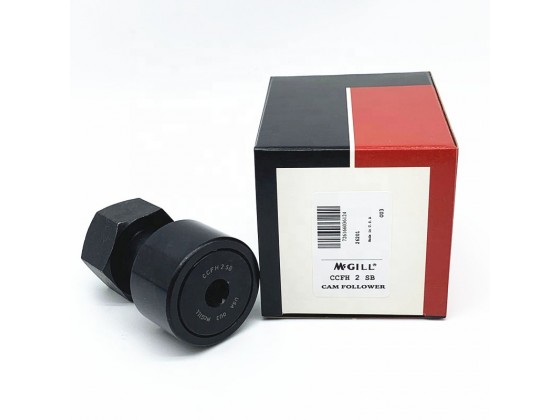

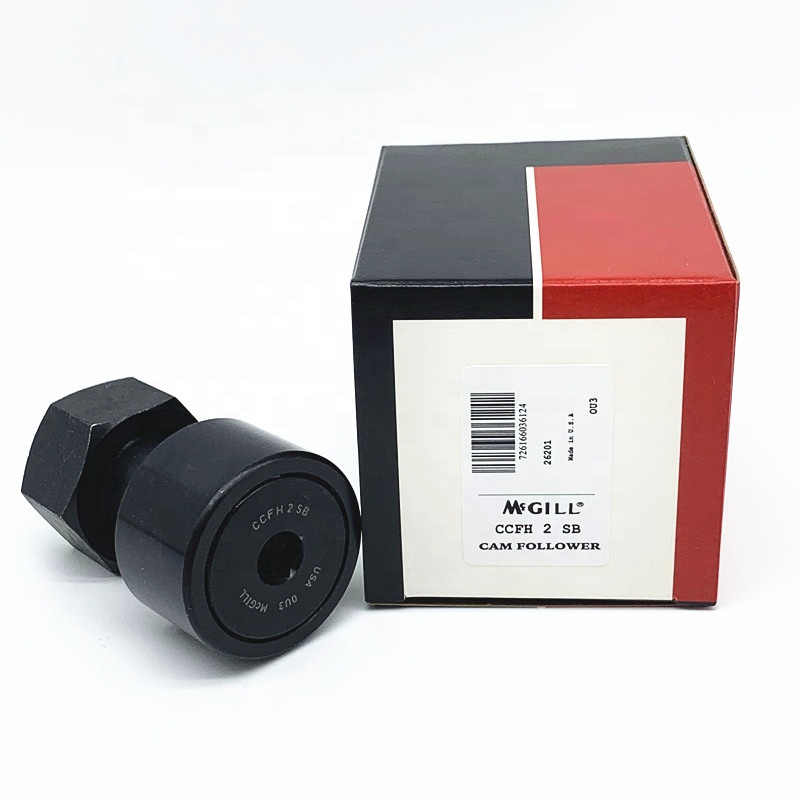

McGILL Track Roller Bearing CF1-1/2-SB inch cam follower bearing

CF-1/2-NS CR8 (dXDXCXB) 4.826X12.700X 8.731X22.225 ；

CF-1/2-SB CR8-1 (dXDXCXB) 4.826X12.700X 9.525X26.194 ；
CF-5/8-NS CR10 (dXDXCXB) 6.350X15.875X10.319X26.988 ；
CF-5/8-SB CR10-1 (dXDXCXB) 6.350X15.875X11.112X30.956 ；
CF-3/4-SB CR12 (dXDXCXB) 9.525X19.050X12.700X35.719 ；
CF-7/8-SB CR14 (dXDXCXB) 9.525X22.225X12.700X35.719 ；
CF-1-SB CR16 (dXDXCXB)11.112X25.400X15.875X42.063 ；
CF-1-1/8-SB CR18 (dXDXCXB)11.112X28.575X15.875X42.063 ；
CF-1-1/4-SB CR20 (dXDXCXB)12.700X31.750X19.050X51.594 ；
CF-1-3/8-SB CR22 (dXDXCXB)12.700X34.925X19.050X51.594 ；
CF-1-1/2-SB CR24 (dXDXCXB)15.875X38.100X22.225X61.119 ；
CF-1-5/8-SB CR26 (dXDXCXB)15.875X41.275X22.225X61.119 ；
CF-1-3/4-SB CR28 (dXDXCXB)19.050X44.450X25.400X70.644 ；
CF-1-7/8-SB CR30 (dXDXCXB)19.050X47.625X25.400X70.644 ；
CF-2-SB CR32 (dXDXCXB)22.225X50.800X31.750X83.344 ；
CF-2-1/4-SB CR36 (dXDXCXB)22.225X57.150X31.750X83.344 ；
CF-2-1/2-SB CR40 (dXDXCXB)25.400X63.500X38.100X96.042 ；
CF-2-3/4-SB CR44 (dXDXCXB)25.400X69.850X38.100X96.042 ；
CF-3-SB CR48 (dXDXCXB)31.750X76.200X44.450X108.74 ；
CF-3-1/4-SB CR52 (dXDXCXB)31.750X82.550X44.450X108.74 ；
CF-3-1/2-SB CR56 (dXDXCXB)34.925X88.900X50.800X121.44 ；
CF-4-SB CR64 (dXDXCXB)38.100X101.60X57.150X146.84 ；
CF-5-SB CR80 (dXDXCXB)50.800X127.00X69.850X200.00 ；

CF-6-SB CR96 (dXDXCXB)63.500X152.40X82.550X236.54 ；
