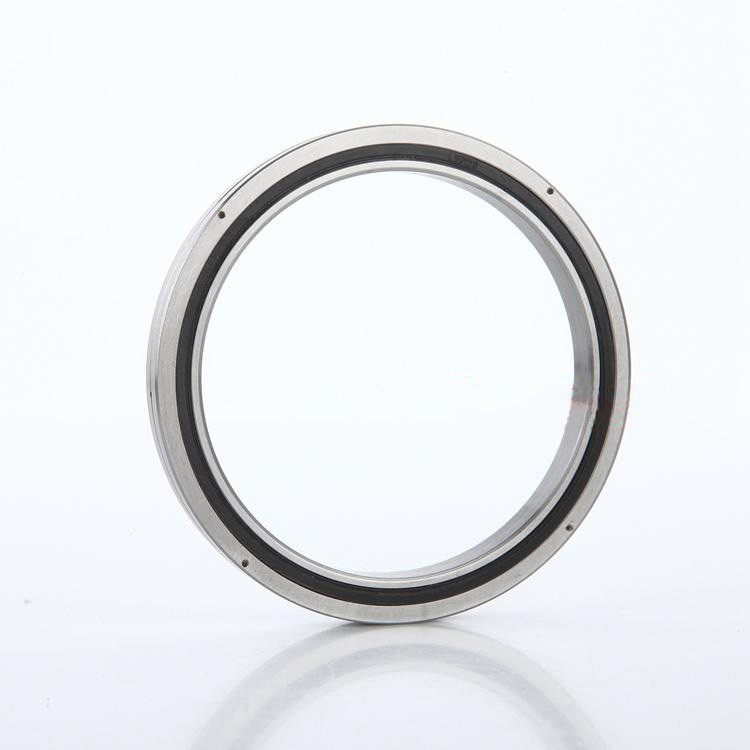

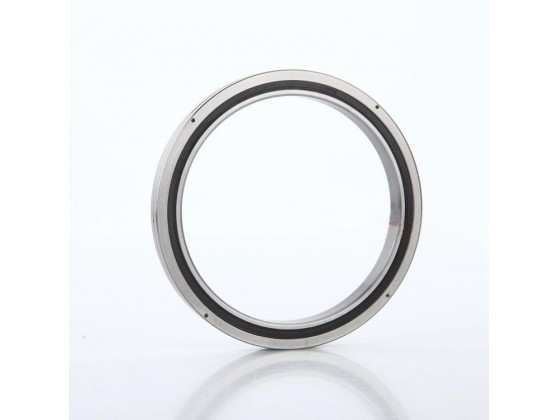

Crossed roller bearing RA series

Time:2021-04-02 11:51:33      Click:246
  • Ddescription

    CRBS508 CRBS608 CRBS708 CRBS808 CRBS908 CRBS1008 CRBS1108 CRBS1208 CRBS1308 CRBS1408 CRBS1508 CRBS16013 CRBS17013 CRBS18013

Product introduction

Model RA (Separable Outer Ring Type for Inner Ring Rotation) Based on model RB, this model is a light and compact type with the thinnest possible inner and outer rings. It is optimal for locations where weight reduction and downsizing are required, such as the hand swiveling unit of robots and manipulators.

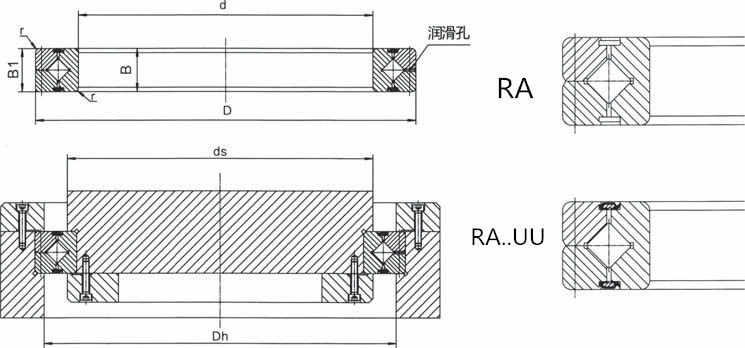

Bearing NO. Dimension(mm) Weight (Kg)
d D B
RA5008 CRBS508 50 66 8 0.08
RA6008 CRBS608 60 76 8 0.09
RA7008 CRBS708 70 86 8 0.1
RA8008 CRBS808 80 96 8 0.11
RA9008 CRBS908 90 106 8 0.12
RA10008 CRBS1008 100 116 8 0.15
RA11008 CRBS1108 110 126 8 0.16
RA12008 CRBS1208 120 136 8 0.17
RA13008 CRBS1308 130 146 8 0.18
RA14008 CRBS1408 140 156 8 0.19
RA15008 CRBS1508 150 166 8 0.2
RA16013 CRBS16013 160 186 13 0.59
RA17013 CRBS17013 170 196 13 0.64
RA18013 CRBS18013 180 206 13 0.68
