oilfield mud pump bearing 254941QU
Time：2020-07-30 13:00:45 Click：3014
- Ddescription
Product introduction

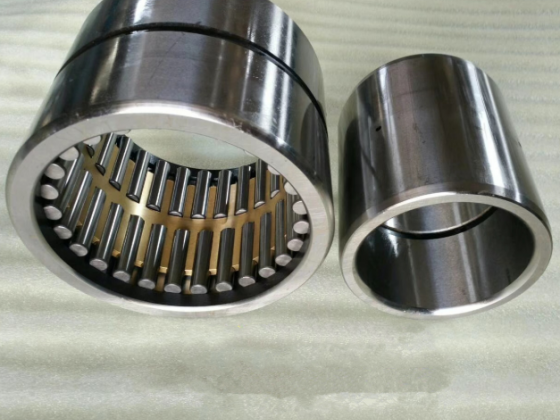

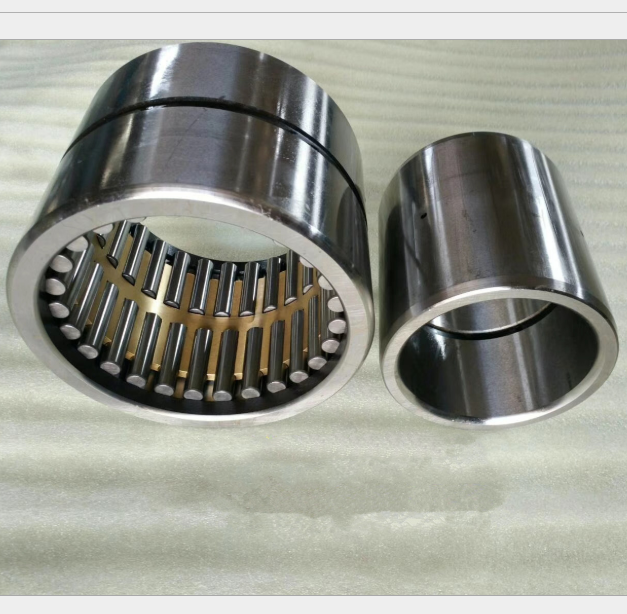

Cylindrical roller bearing for mud pump F-1300 of drilling rig NNAL6/206.375Q4/W33XYA2 254941QU
Bearing Model:NNAL6/206.375Q4/W33XYA2
Bearing Category:cylindrical roller bearing
Mud Pump Bearings:
New Designations :NNAL6/206.375Q4/W33XYA2
Old Code :254941QU
Main demensions :206.375 × 285.75 × 222.25
Bore Dia × Outside Dia × Width Dia (mm)
ID :206.375 mm Inside diameter/Bore size
OD :285.75 mm Outside diameter
B :222.25 mm Thickness/high/width
M :45.4 kg Weight, Mass
Category :Mud pump bearings (for Commonwealth oftheBahamas or other)
| Mud Pump No | New | Old |
| F500 | NNAL6/101.6Q4/C5W33XYA2 | 5G354920Q |
| NUP464779Q4/C9YA4 | 92984QU | |
| NU3228X2M | 4G32828H | |
| 23138CA/C9 | 3053738U | |
| F800 | NNAL6/177.8Q4/W33XYA2C5 | 254735Q |
| NUP464775Q4/C9YA4 | 928/508QU | |
| 23148MB | 3G3003748HY | |
| NU3036X2M/C4 | 4G32836H | |
| F1000 | NNAL6/177.8-2Q4/W33 | 254936Q |
| NUP464744Q4/C9 | 929/588.8QU | |
| 24056CA/W33C3 | 3G4053156HY | |
| NU3040X3M | 4G32840H | |
| F1300 | NNAL6/206.375Q4/W33XYA2 | 254941QU |
| NUP464776Q4/C9YA4 | 928/660.4QU | |
| 24060CA/W33C3 | 3G4053160HY | |
| NU3044X3M | 4G32844H | |
| F1600 | NNAL6/206.375Q4/W33XYA2 | 254941QU |
| NUP464777Q4/C9YA4 | 929/660.4QU | |
| 23160MB/W33C3 | 3G3003760HY | |
| NU3044X3M | 4G32844H | |
| 3NB1300 | NFP38/666.75X3Q4 | 228/666.75 |
| 24072CA/W33 | 4053172Y | |
| NU3044X3M | 4G32844H | |
| NNAL6036X2-2M/W33X | 154836 | |
| 3NB1600 | NFP6/723.795Q4 | 229/723Q |
| 23176CA/W33 | 3053776Y | |
| NU2148X3M | 4G32848H | |
| NNAL6/209.55Q4/C4W33X | 4G154942Q | |
| ZP205 | 5691/600 | 61981/600 |
| 1687/650 | 5692/650X1 | |
| 22334 | 3634 | |
| ZP205 | 1687/650 | 5692/650X1 |
| 1687/620 | 5617/620 | |
| 32630EH | NU2330EM | |
| 3630MB | 3630 | |
| ZP175 | 91682/530 | 5692/530 |
| 1689/520 | 5617/520 | |
| NU2322M | 32622 | |
| 22322CA | 53622 | |
| ZP275 | 1681/800 | 5611/800 |
| 91682/800 | 5692/800 | |
| 32630EH | NU2330EM | |
| 3630MB | 3630 | |
| ZP375 | 2687/1049 | 2327/1049YA |
| 32630EH | NU2330EM | |
| 3630MB | 3630 |
