TBU Railway bearing
Time：2020-07-28 12:18:32 Click：3727
- Ddescription
certified supplier of SKF FAG TIMKEN NSK Railway bearing. lower price for wholesale Europe Technology. Large size bearing for railway railroad.
Product introduction

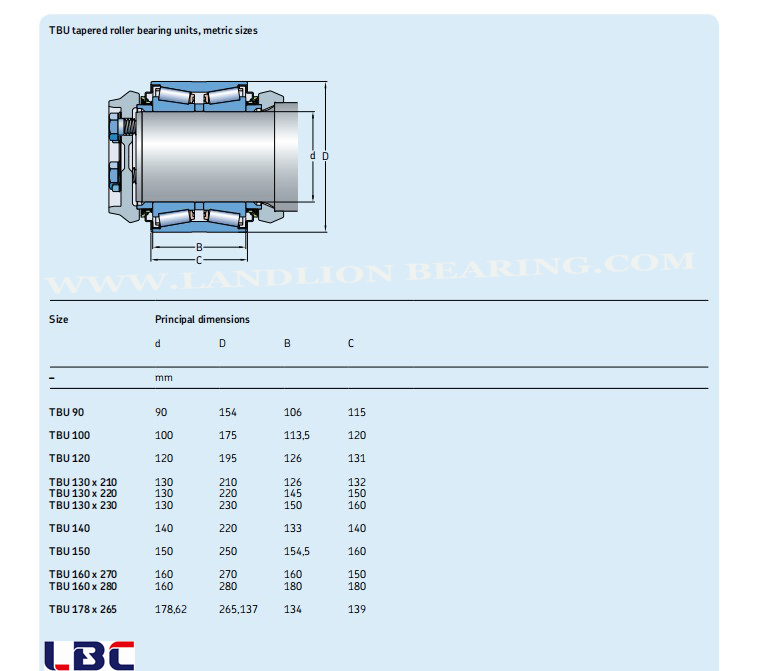

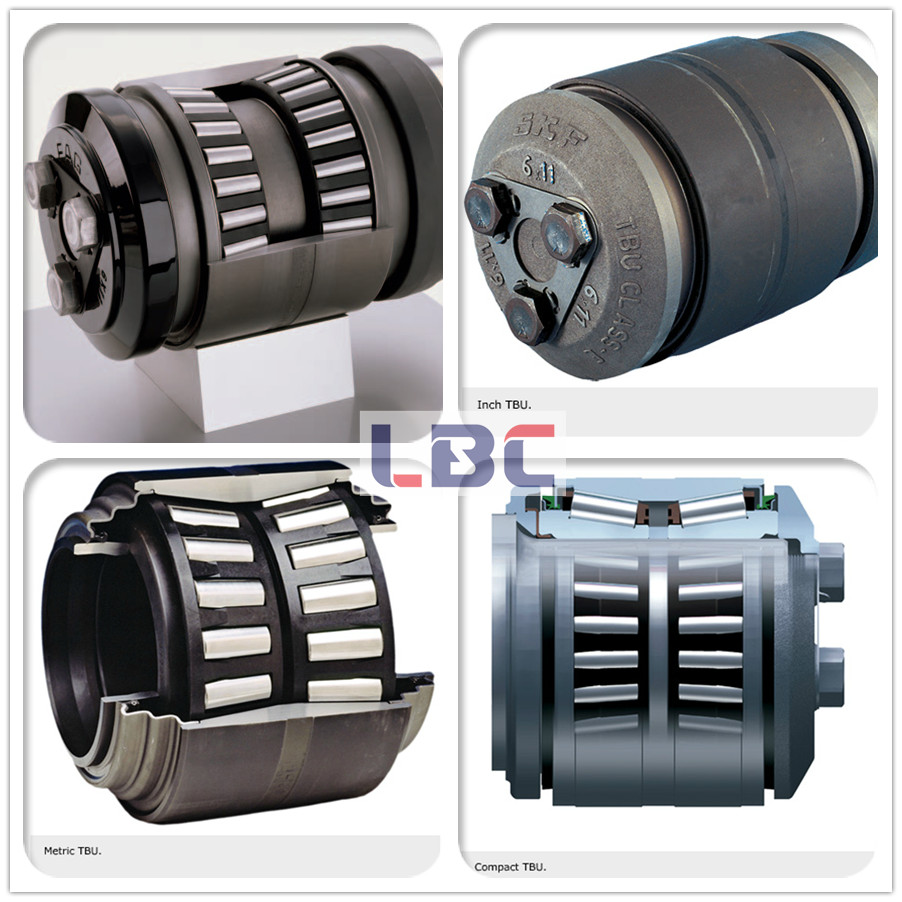

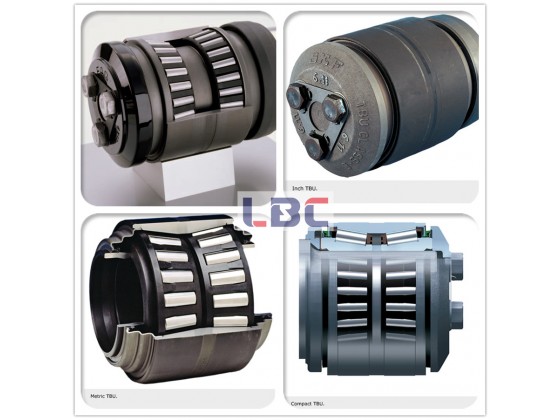

TBU CTBU tapered roller bearing units
skf railway bearing TBU taper roller bearing
metric sizes
| Size Principal dimensions | d | D | B | C |
| TBU 90 | 90 | 154 | 106 | 115 |
| TBU 100 | 100 | 175 | 113,5 | 120 |
| TBU 120 | 120 | 195 | 126 | 131 |
| TBU 130 x 210 | 130 | 210 | 126 | 132 |
| TBU 130 x 220 | 130 | 220 | 145 | 150 |
| TBU 130 x 230 | 130 | 230 | 150 | 160 |
| TBU 140 | 140 | 220 | 133 | 140 |
| TBU 150 | 150 | 250 | 154,5 | 160 |
| TBU 160 x 270 | 160 | 270 | 160 | 150 |
| TBU 160 x 280 | 160 | 280 | 180 | 180 |
| TBU 178 x 265 | 178,62 | 265,137 | 134 | 139 |
