CARB toroidal roller bearings

Time：2020-04-24 14:23:13 Click：1337

Ddescription

Product introduction

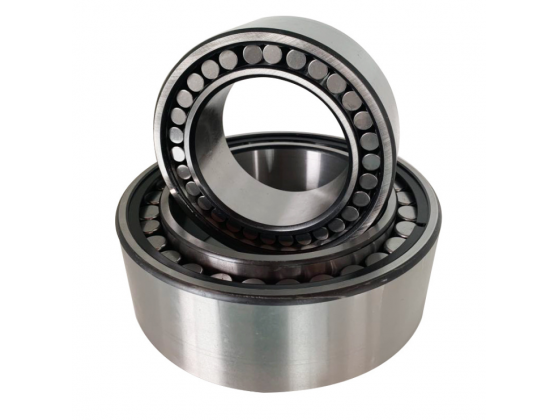

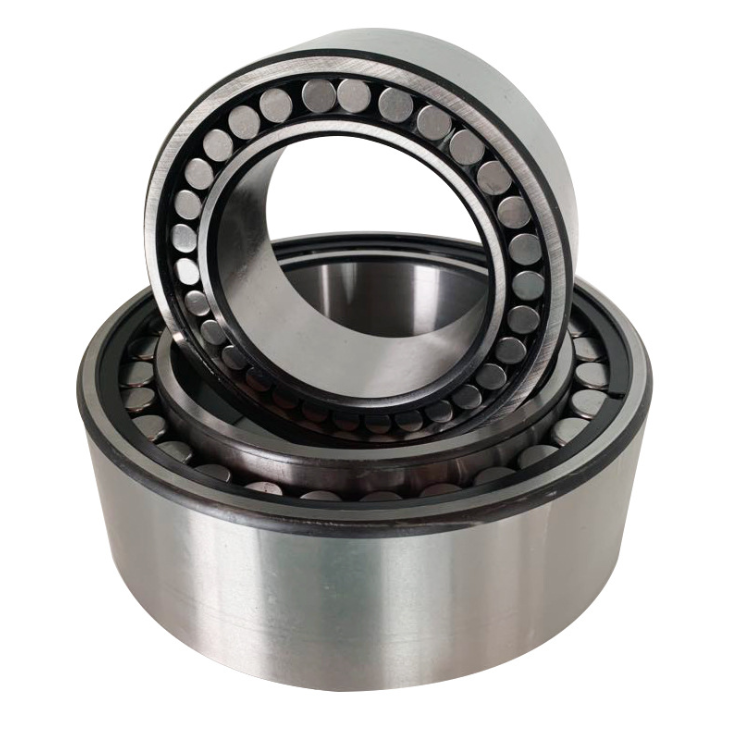

C2220C3 CARB toroidal roller bearings

products name : CARB toroidal roller bearings

Brand name : Fag SKF

Bearing modle : C2220C3

AVAILABILITY:IN STOCK

WEIGHT:4.9500 KGS

INSIDE DIAMETER (MM)：100MM

OUTSIDE DIAMETER (MM):180MM

WIDTH (MM):46MM

CAGE TYPE:STEEL

SEALS OR SHIELDS:OPEN TYPE

CLEARANCE:C3

DYNAMIC LOAD RATING (KN):415

STATIC LOAD RATING (KN):465

FATIGUE LOAD RATING (KN):49

REFERENCE SPEED RATING (R/MIN):3600

LIMITING SPEED RATING (R/MIN):4800

CARB toroidal roller bearings have one row of long, slightly barrel-shaped symmetrical rollers and torus-shaped raceway profiles .

They are non-locating bearings and accommodate exclusively radial loads. CARB bearings are often used to replace thenon-locating spherical roller bearing in a locating/non-locating bearing arrangement.

CARB bearings can reduce noise and vibration levels, for example, in paper machines and fans.

	 Industry & Application

* Continuous casters
* Fans and blowers
* Crushers and grinding mills
* Industrial transmissions
* Conveyors
* Hydraulic motors and pumps
* Wind turbines

* Paper Machines

if you want to know more information about CARB toroidal roller bearings, pls contact to us .
