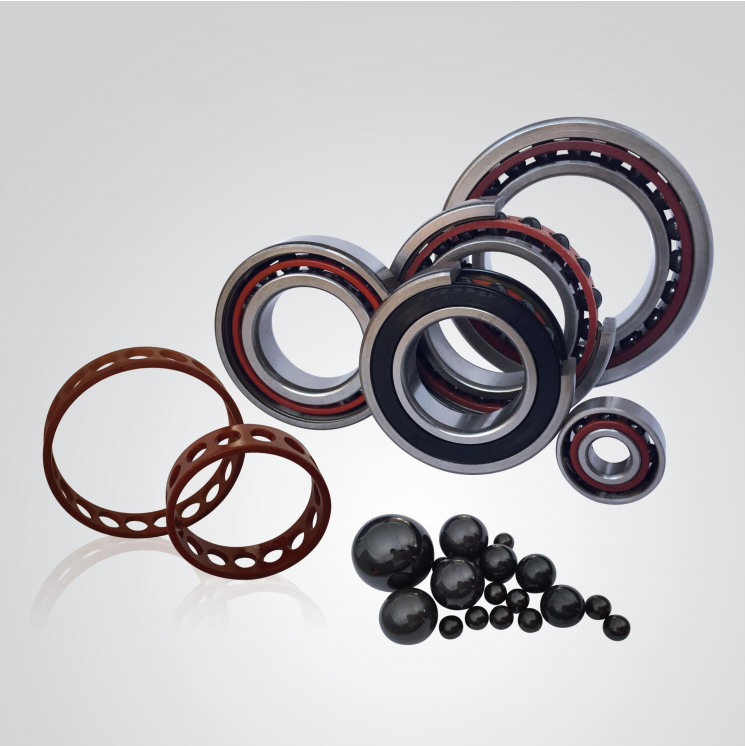

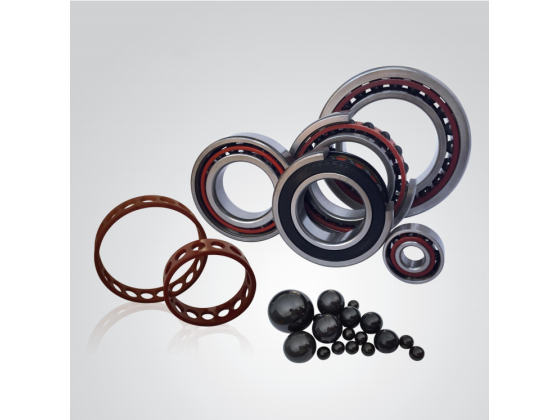

electric spindle Ceramics Ball Angular Contact Bearing P4

Time:2020-07-09 15:03:05      Click:119
  • Ddescription

Product introduction

our company specializing in P4&P4A ultra precision mixed ceramic bearing research and development and production.we supply famous electric spindle manufacturers, all products for import substitution.It is especially suitable for occasions with high precision, high speed, long life, high temperature, anti-corrosion and anti-magnetism. It has the advantages of high speed, long life, corrosion resistance, self-lubrication, insulation and so on .

spindle Ceramics Ball Angular Contact Bearing P4

Hybrid angular contact bearings

Super-precision angular contact ball bearings: High-speed, B design, sealed as standard S719 .. B (HB .. /S) and S70 .. B (HX .. /S)

Type of arrangement Universally matchable bearings and matched bearing sets can be arranged in various combinations depending on the stiffness, rigidity and load requirements of the application. The possible combinations are shown in fig. 1, including the designation suffixes applicable to matched bearing sets.

Back-to-back bearing arrangement In a back-to-back bearing arrangement, the load lines diverge toward the bearing axis. Axial loads acting in both directions can be accommodated, but only by one bearing or bearing set in one direction each. Bearings mounted back-to-back provide a relatively rigid bearing arrangement that can also accommodate tilting moments.

Face-to-face bearing arrangement In a face-to-face bearing arrangement, the load lines converge toward the bearing axis. Axial loads acting in both directions can be accommodated, but only by one bearing or bearing set in one direction each. Face-toface arrangements can accommodate small amounts of deflection.

Tandem bearing arrangement In a tandem bearing arrangement, the load lines are parallel so that radial and axial loads are shared equally by the bearings in the set. The bearing set can only accommodate axial loads acting in one direction. If axial loads act in the opposite direction, or if combined loads are present, additional bearing(s) adjusted against the tandem arrangement should be added.
