Your location： HOME > product > ball bearings > angular contact ball bearing

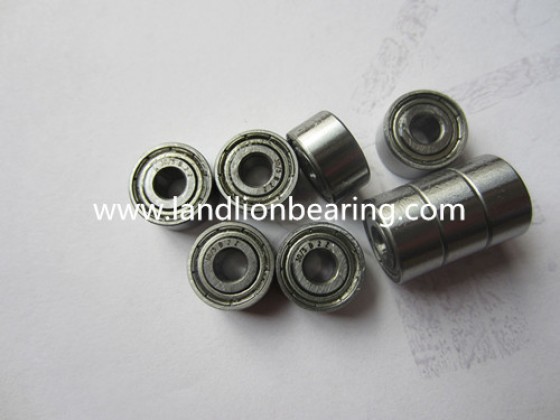

30/5-B-2z 30/5-2z 30/5-B-2z-TVH angular contact ball bearing

Time：2016-01-04 18:43:43      Click：4097
  • Ddescription

Product introduction
Bearing name: 30/5-B-2Z bearings
New Model: 30/5-B-2Z-TVH
Price: INQUIRY
In Diameter: 5mm
Out Diameter: 14mm
Thickness: 7 mm
Reference: 30/5-B-2Z-TVH
Bearing brand: other
Bearing class: Angular contact ball bearings,DOUBLE ROW
Remarks: Please contact us for other details



Principal Dimensions Bearing No. Basic Load Ratings Mass
(mm)   (N)
d D B Shielded Sealed Cr Cor (kg)
5 14 7 30/5 2Z 30/5 2RS 1810 950 0.008
6 17 9 30/6 2Z 30/6 2RS 3100 1400 0.01
7 19 10 30/7 2Z 30/7 2RS 3650 1700 0.012
8 22 11 30/8 2Z 30/8 2RS 5200 2610 0.02
10 26 12 3000 2Z 3000 2RS 5700 3250 0.022
12 28 12 3001 2Z 3001 2RS 6200 3750 0.025
15 32 13 3002 2Z 3002 2RS 8600 5400 0.036
24 7 3802 2Z 3802 2RS 2340 1880 0.009
17 35 14 3003 2Z 3003 2RS 9200 6200 0.042
26 7 3803 2Z 3803 2RS 2480 2100 0.016
20 42 16 3004 2Z 3004 2RS 14500 9600 0.08
32 10 3804 2Z 3804 2RS 5600 4850 0.02
25 47 16 3005 2Z 3005 2RS 15500 11100 0.1
37 10 3805 2Z 3805 2RS 6000 5600 0.025
30 55 19 3006 2Z 3006 2RS 20300 13500 0.16
42 10 3806 2Z 3806 2RS 6300 6100 0.03
35 62 20 3007 2Z 3007 2RS 24500 16800 0.2
47 10 3807 2Z 3807 2RS 6700 7000 0.035
40 68 21 3008 2Z 3008 2RS 25500 18800 0.25
52 10 3808 2Z 3808 2RS 7000 7800 0.04
45 58 10 3809 2Z 3809 2RS 7200 8300 0.053
50 65 12 3810 2Z 3810 2RS 8700 10400 0.07
55 72 13 3811 2Z 3811 2RS 12100 15700 0.09
60 78 14 3812 2Z 3812 2RS 14500 17500 0.14
70 90 15 3814 2Z 3814 2RS 19200 23800 0.19
80 100 15 3816 2Z 3816 2RS 19600 25500 0.23
