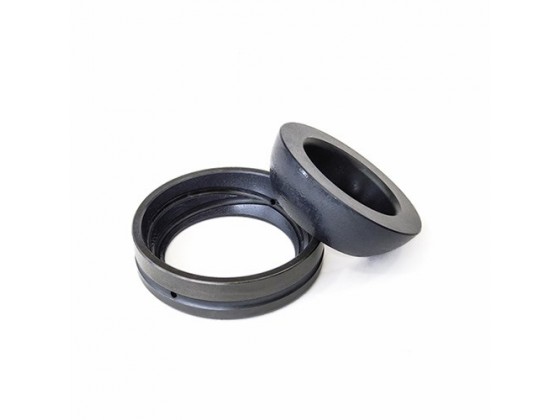

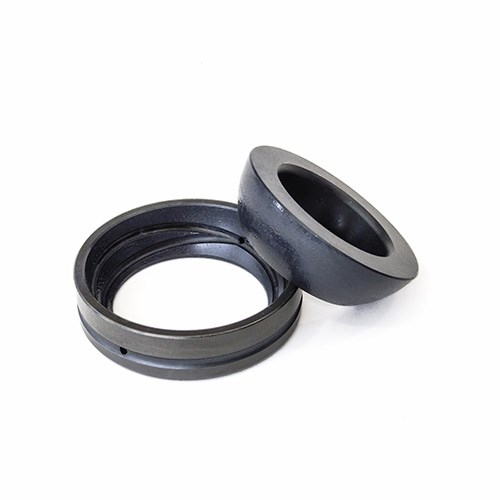

GACZ..S inch Spherical Plain Bearing
- Ddescription
63.5*100.013*36.07mm Inch Series Angular Contact Spherical Plain Bearing GACZ63S GACZ63 GACZ 63
GACZ63S = GAZ208SA = B40SA = 25SBT40
Product Description
Bearing rings of carbon chromium steel, hardened and
Phosphated, sliding surface treated with MoS2. Outer ringHave groove and lubrication holes, sliding surface with two
Cross lubrication grooves.
Bearing No. (Interchange list)
china = SKF = RBC = TORRINGTON
GACZ12S = GAZ008SA = B8SA = 5SBT8
GACZ15S = GAZ010SA = B10SA = 6SBT10
GACZ19S = GAZ012SA = B12SA = 7SBT12
GACZ22S = GAZ014SA = B14SA = 8SBT14
GACZ25S = GAZ100SA = B16SA = 10SBT16
GACZ31S = GAZ104SA = B20SA = 12SBT20
GACZ34S = GAZ106SA = B22SA = 13SBT22
GACZ38S = GAZ108SA = B24SA = 15SBT24
GACZ44S = GAZ112SA = B28SA = 17SBT28
GACZ50S = GAZ200SA = B32SA = 20SBT32
GACZ57S = GAZ204SA = B36SA = 22SBT36
GACZ63S = GAZ208SA = B40SA = 25SBT40
GACZ69S = GAZ212SA = B44SA = 27SBT44
GACZ76S = GAZ300SA = B48SA = 30SBT48
GACZ82S = GAZ302SA = B52SA = 32SBT52
GACZ88S = GAZ308SA = B56SA = 35SBT56
GACZ95S = GAZ312SA = B60SA = 37SBT60
GACZ101S = GAZ400SA = B64SA = 40SBT64
GACZ107S = GAZ404SA = B68SA =
GACZ114S = GAZ408SA = B72SA = 45SBT72
GACZ120S = GAZ412SA = B76SA = 47SBT76
GACZ127S = GAZ500SA = B80SA = 50SBT80
GACZ152S = GAZ600SA = B96SA = 60SBT96
contact : sales1@landlionbearing.com
Dimension
Load ratings
SPEC.1
d
D
B
C
T
dk
S
A
rs,r1s
α≈
Cr
Cor
Mass
GACZ12S
12.7
22.225
6.86
4.83
7.62
18.26
1.3
2.39
0.51
7
6
18
0.013
GACZ15S
15.875
26.988
8.64
6.35
9.4
22.83
1.48
2.77
0.76
6
10
31
0.025
GACZ19S
19.05
31.75
10.41
7.87
11.18
27.43
1.79
3.18
1
6
16
47
0.038
GACZ22S
22.225
36.512
12.19
9.65
13.21
31.95
2.02
4.37
2
5.5
22
66
0.049
GACZ25S
25.4
41.275
13.97
11.18
15.24
36.5
2.54
5.16
2
6
29
87
0.085
GACZ31S
31.75
50.8
17.78
13.97
18.8
45.59
3.36
5.94
2
6
47
142
0.159
GACZ34S
34.925
55.562
19.56
15.24
21.34
49.2
3.69
7.14
2.54
4
53
159
0.213
GACZ38S
38.1
61.912
21.34
16.76
23.11
54.75
3.93
7.92
2.54
5.5
66
197
0.301
GACZ44S
44.45
71.438
24.89
20.07
27.18
63.88
4.72
8.33
2.54
6
91
273
0.458
GACZ50S
50.8
80.962
28.7
13.37
31.24
73.02
5.51
9.52
3.56
5.5
122
365
0.671
GACZ57S
57.15
90.488
32.26
26.67
35.31
82.17
6.18
11.51
3.56
5.5
155
466
0.948
GACZ63S
63.5
100.013
36.07
29.97
39.12
91.19
6.79
12.7
3.56
5
196
589
1.13
GACZ69S
69.8
111.125
39.62
32.38
43.18
100.33
7.46
13.08
4.6
5
231
694
1.75
GACZ76S
76.2
120.65
43.43
35.69
47.24
109.52
8.17
14.68
4.6
5
279
838
2.28
GACZ82S
82.55
130.175
47.24
39.24
51.56
118.74
9.03
16.66
4.6
5
332
995
2.89
GACZ88S
88.9
139.7
50.8
42.54
55.37
128.02
9.15
17.86
4.6
5
389
1167
3.57
GACZ95S
95.25
149.225
54.61
45.85
59.44
136.91
10.1
19.43
4.6
4.5
449
1348
4.35
GACZ101S
101.6
158.75
58.42
49.15
63.5
146.05
10.4
19.84
4.6
4.5
515
1545
5.26
GACZ114S
114.3
177.8
65.7
55.75
71.12
164.46
12.4
22.22
4.6
4.5
663
1990
7.76
GACZ127S
127
196.85
73.1
62.36
79.5
182.63
13.9
25.4
4.6
4.5
818
2455
11.07
GACZ152S
152.4
222.25
78.7
66.42
85.72
207.16
16.1
34.8
4.6
4.5
985
2955
17.37
